Foam & Ware Fluxers + Flux Stones

Model C79-10 Foam Fluxer with 10-inch foam nozzle

Wenesco's Foam Fluxers are widely used to apply flux to circuit boards prior to wave soldering.  They're renowned for generating a smooth, even foam head across the length of the foam nozzle.
    We manufacture them out of stainless steel with plastic fittings and diffuser to resist virtually all foaming fluxes.

                                                                            OTHER SIZES  MADE TO ORDER

Model Foam nozzle-inches
C79-1 1 X 2
C79-2 2 X 2
C79-4 4 X 2
C79-6 6 X 1 or 2
C79-8 8 X 1 or 2
C79-10 10 X 1 or 2
C79-12 12 X 1 or 2
C79-16 16 X 1 or 2
C79-18 18 X 1 or 2
C79-24 24 X 1 or 2
All include a pressure regulator, pressure guage, flow control valve, 4-foot input hose, and drain tube.  Compressed air at 10 psi is required for operation.

Replacement Flux Stones (Diffuser)
Flux Stones are made from micro-porous plastic tubing.  When pressurized, they create a foam "head" composed of tiny air bubbles.  Replacement stones for existing foam fluxers are cut to size and fittings are attached.  Please call for a quote.

Flux stone assembly with special fittings to fit some ELECTROVERT foam fluxers




Wenesco Wave Fluxers are usually used in automated soldering applications where a closely defined flux pattern is required.

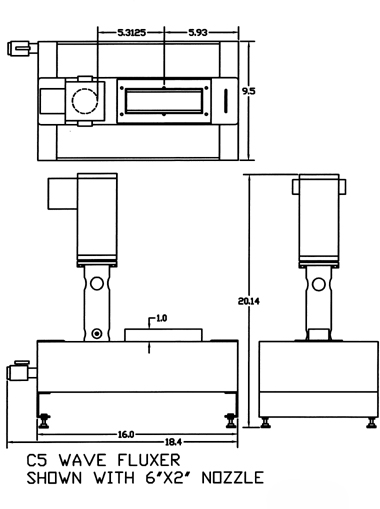

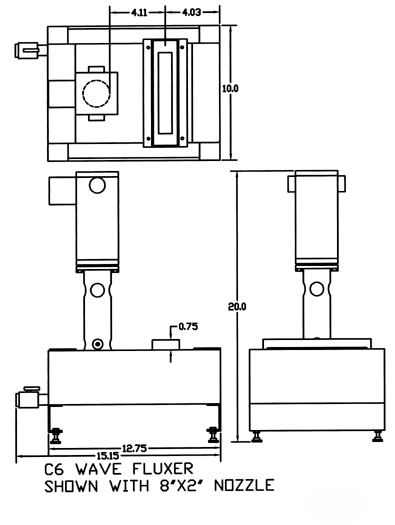

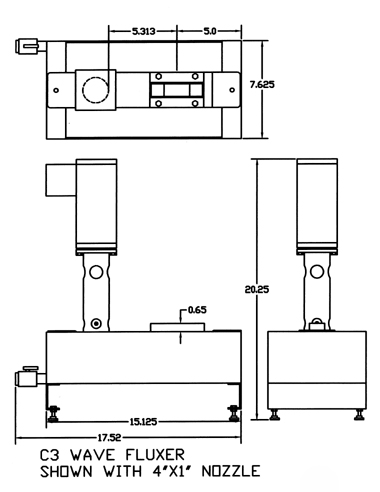

The models shown match our M3, M5, and M6 wave solder pots.
Our fluxers feature a stainless steel pot, variable wave control, and flux drain valve.Flux nozzles are easily changed, and tooling may be added (as shown in the photo) to support the part to be fluxed. Flux flow may be constantly on or for a timed duration. Wenesco can provide fittings and level switches to support flux level, and density control apparatus.
We invite Inquiries for custom built fluxers.
