INDUSTRIAL MELTERS TO 1000F WENESCO ELECTRIC MELTING POTS FOR LEAD, SOLDER, BABBITT,
ZINC, PEWTER ,CERRO AND OTHER SOFT METALS INCLUDING LEADFREE ALLOYS MELTING UNDER 1000F (538C)Small Round Pots

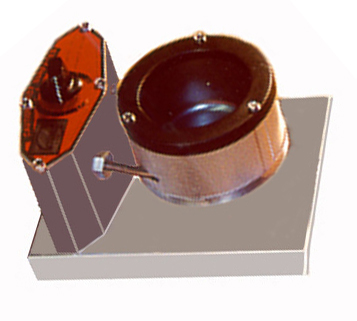

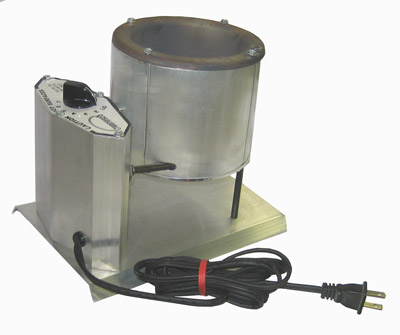

Model P19 Model P19D with digital thermostat control Model MPM 21
Model Solder capacity Pot ID inches Pot OD inches Clearance under pot Volts Watts Price lead-free or standard alloy
P19 4 lb 3 dia x 2d 5 dia x 4d N/A 120 500 €280 MPM 21 20 lb 4 dia x 3.75d 5 dia x 4.25d 41/2 inches 120 700 €350 P19D 4 lb 3 dia x 2d 5 dia x 4d N/A 120 500 €950 Add 20% for 240V single phase.
Standard Round Pots
Our Standard Pots are controlled with a remote or mounted Digital Thermostat. Current temperature and set point are displayed in F or C. The thermocouple is mounted to the outer surface of the crucible (liner), so as not to be damaged during operation. Heavy duty heater elements are clamped to the crucible and are easily replaced. High temperature insulation separates the crucible from the stainless steel outer housing. Adjustable leveling feet are standard.
Model MS 250 shown with drain valve, pot cover, and remote thermostat. Model MS 250 shown with drain valve, pot cover, and mounted thermostat.
MODEL CAPACITY
in poundsSIZE INSIDE
in inchesSIZE OUTSIDE in inches VOLTS WATTS MS80 80 6D X 10.5 D 14 DIA x 16D 120
240-11100
1250MS120 120 8.5 D x 8.75D 14 DIA x 16D 240-1 3400 MS250 250 10.25D X 12D 24 DIA x 16D 240-1 5280 MS420 420 12D X 13D 24 DIA x 16D 240-1 7300 MS700 700 13 DIA x18D 24 DIA x 25D 240-1 9800 MS1000 1000 15.5 DIA x 20D 23 DIA x 28D 240-3 14500
Call for quotes on other power requirements.
Special Electric Pots
We welcome the opportunity to quote on custom melting pots for soft metals up to 1000F. We have designed and built melters in many shapes and sizes to suit a wide scope of applications.

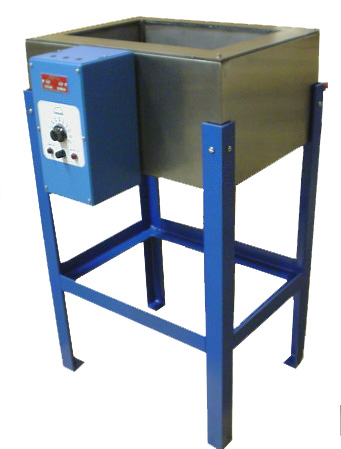

Special electric pot for melting 6,000 lb.of lead.at 700F. The pot is mounted on a stand and includes a drain valve. Special electric pot for continuous applicationof tin to steel wire as it comes off a roll Model MPM250 shown with remote digital thermostat and drain valve. Pot melts 250 lbs. up to 850F.
Size inches: OD 16X16X10H ID12X12X7H
Power 4000W@240V
Pouring furnace with 9" wheel gearbox has a, 500-lb capacity for melting and pouring lead-free babbitt
Custom melting pot for 100 pounds of lead-free alloy.
Custom 8,000-lb Rectangular Melting Tank
Model MPM1325 electric melting pot for soldering edges of copper roof shingles.
Model ID- inches OD-inches Power MPM 1700 27x3x3 deep 31x7x6 deep 120 or 240V MPM 1325 50x3x3 deep 54x7x6 deep 240V To see this pot in action, click HERE.
A thermostat control and drain valve are standard, while a ceramic coating for lead-free soldering is optional We also make a gas fired version. To viewthat model, click HERE.
