                                                         Wave type Rework Stations
Include an adjustable radiant preheater which greatly reduces the time and temperature requirement during the flow cycle when working with multilayer PCBs
Preheat activates flux prior to soldering and eliminates thermal shock which mayotherwise cause localized warpage, thru-hole damage, and delamination.
Components are  positioned over the mini-wave nozzle which matches the lead pattern of the component.
Controlled solder flow to the thru-hole pattern transmits minimal heat to the leads.
After extraction, holes are cleared with low pressure air, then a new component is inserted and soldered.

This Concept 5 (above) will remove connectors up to 6 inches long from a multilayer PCB.



This Concept 6 will remove connectors up to 14 inches long from a multilayer PCB.

FEATURES
WB01372_.gif (406 bytes)Ceramic coated interior for standard or lead free alloys
WB01372_.gif (406 bytes) Digital thermostat maintains solder temperature up to 350C (662F).
WB01372_.gif (406 bytes)Accurate timer, footswitch activated, controls solder flow duration.
WB01372_.gif (406 bytes) Vari speed Dual mode Pump assures a dross free wave
WB01372_.gif (406 bytes)Laser Pointer  locates nozzle under component with glowing red http://www.wenesco.com/Images11/red-dot.gif dot.
WB01372_.gif (406 bytes)Stainless Steel exterior housing with adjustable feet
to clear holes after component removal-OPTIONAL

Model Max nozzle size Power Preheater  Max PCB Solder
CONCEPT 5 6 X 2 in 2000 W, 120 or 240 V 6 X 6 in 8 x 6 in 65 lb
CONCEPT 6 14 X 2 in 3000 W,  240V 12 X 18 in 12 x 18 in 130 lb



"A" style  bayonet mount nozzle.
Maximum size is 3 in X 3 in


A-style nozzle adapter included with all models


"B" style nozzles drop into a nest for fast changeover. This type of nozzle should be used for components over 3-1/2 inches long to assure a smooth wave and even temperatures

 To view a list
of Wenesco's many
standard nozzles,
Click HERE







             Custom nozzles
Send Wenesco a sample or drawing of your component. We will submit a drawing of a nozzle for your approval

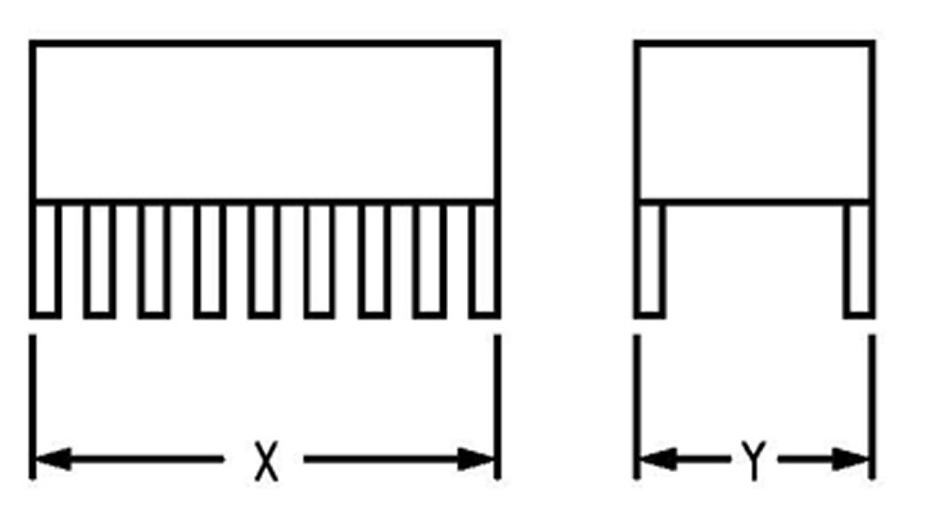

Simply tell us the X and Y dimensions of the components you want to desolder. We supply the nozzles to your specs

Click HERE to watch a video made by our customer demonstrating simple removal
and replacement of components with Model M5.

Click HERE to view general purpose wave solder pots for selective soldering
