Bearings are valuable...until they go bad, and then they're worthless.  To help you quickly discover what bearings may be salvaged, Wenesco offers positive testing d



Model M30 Bearing Tester shown with a partial selection of available blocks. Testing results are displayed on the analog meterwithin 15 seconds.

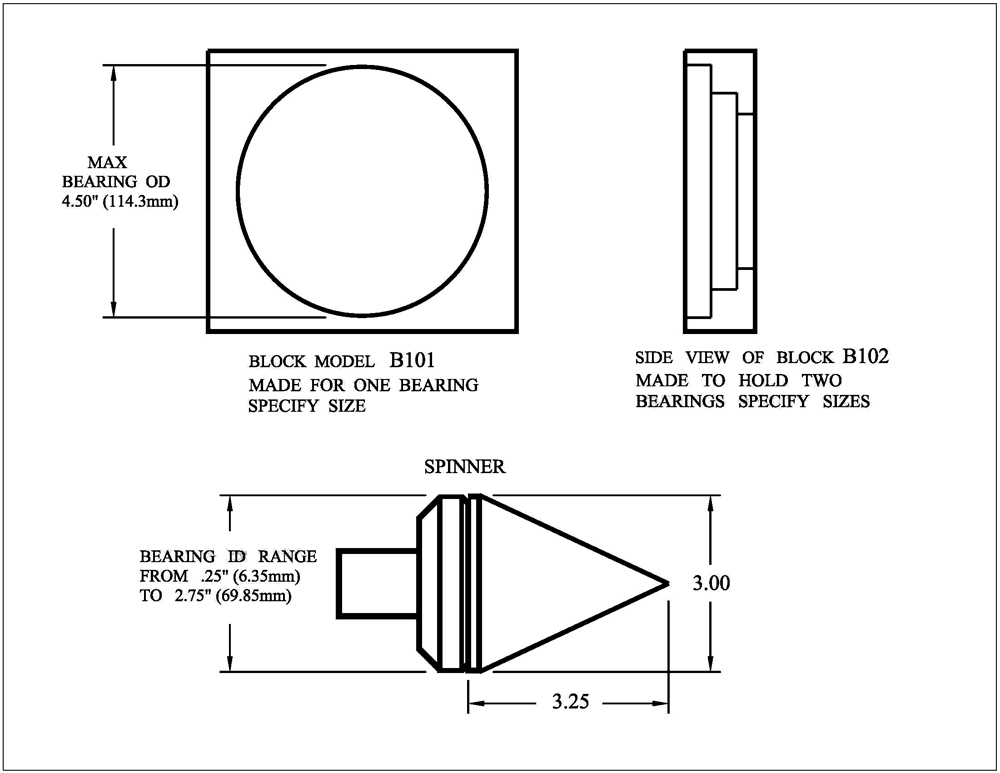

HOW IT WORKS:  The bearing is simply inserted into a block which holds the bearing in position for testing. You then manually move the motorized spinning rubber cone into the inner race, which spins the bearing at about 3000 rpm.

A small microphone under the block sends the resultant noise signal to an analog meter, By comparing the meter reading from the test bearing to the reading of a new bearing, you can determine its value.


                                      Wenesco makes blocks for all kinds of bearings.







                                    Chart of Standard Blocks for many automotive bearings



                                                      BLOCKS FOR ALTERNATOR BEARINGS
Q70 6200, 6201, 6203   Q71.5 5300, 6202, 6300
Q71 6203 Q72.5 5303, 6204, 6303
Q72 5304, 5604, 6205, 6304 Q73.5 5306, 5606, 6207, 6306
Q73 5305, 6206, 6305 Q74.5 6209
Q74 5307,6208, 6307 Q80.5 5302, 6302
Q80 5301, 6301 Q81.5 5309, 6309
Q81 5308, 6308 Q82 6212, 6310



                                              BLOCKS FOR TORQUE CONVERTER BEARINGS
Model Ref. Bearing OD Bearing ID
Q342   2.815 2.620
Q342A Post 99 2.815 1.900
Q342B Stator 1 2.825 1.900
Q342C Stator 2 2.900 2.085
Q342D   3.278 2.385
Q342E   2.355 1.075
