STIRRERS

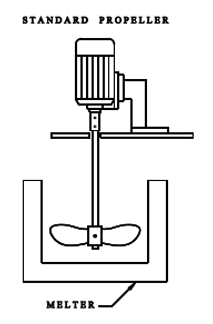

Stirrers are available with your choice of conventional propellers or "side wiping" propellers that clean the melter's wall during the heat cycle.. The entire stirrer is easily removed from the melter for cleaning or service.    Stirrers for larger melters and higher torque are quoted to requirements.  Variable speed control is available for most stirrers.

Model	Speed (RPM)	Viscocity (cps)	Melter Size	Motor	Power	Propeller
STR 60	60	Up to 2000	Up to 5 gal	OPEN,FAN COOLED	120	standard
STR 60A	30	Up to 2000	Up to 5 gal	OPEN,FAN COOLED	120	Wiper or standard
STR60B	63	Up to 2000	Up to 5 gal	OPEN,VENTED	240V-1ph	standard
STR60C	13	Up to 2000	Up to 10 gal	OPEN,FAN COOLED	120	Wiper 5G standard 10G
STR 60AA	15	Up to 70000	Up to 5 gal	TEFC	120/240 1ph      3ph optional	Wiper or standard
STR 60BB	30	Up to 35000	Up to 5 gal	TEFC	120/240 1ph      3ph optional	Wiper or standard
STR 600A	15	Up to 70000	Up to 20gal	TEFC	208/240/480 3 ph	Wiper or standard
STR 600B	30	Up to 35000	Up to 20gal	TEFC	208/240/480 3 ph	Wiper or standard
STR 1200A	15	Up to 70000	Up to 45 gal	TEFC	208/240/480 3 ph	Wiper or standard
STR 1200B	30	Up to 35000	Up to 45 gal	TEFC	208/240/480 3 ph	Wiper or standard
STR 1800A	15	Up to 70000	Up to 60 gal	TEFC	208/240/480 3ph	Wiper or standard
STR 1800B	30	Up to 35000	Up to 60 gal	TEFC	208/240/480 3ph	Wiper or standard

Stirrers for over 70000 cps quoted,  Speed Control optional if 3-phase power is available. Other operating voltages are available. Air motors with speed control can be specified.

 All stirrer motors, 120V OR  240V available, air motors are also available
