Modified - Custom Hot Plates

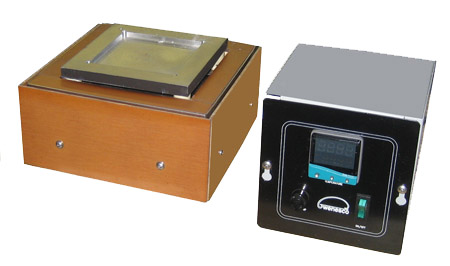

Model HP66 hot plate with 6x6 anodized aluminum surface, fitted with a removable hood and transparent glass lid, which slides away easily for access to the heated object Temperature is controlled with a remote digital thermostat that displays current temperature and set point. This style is available up to a 24 x 24-inch plate size	Electrically-isolated hot plate Model HPI66 has a 6X6 inch aluminum heating surface that is rated at 1000V. The plate in this photo has been custom machined to fit a special workpiece to be heated . Temperature is controlled with an accurate  remote digital thermostat with PID function. Set point and current temperature are digitally displayed. Model HPI66 operates at your choice of 120 or 240VAC, with a temperature rating of 400C  Larger models are made to order.

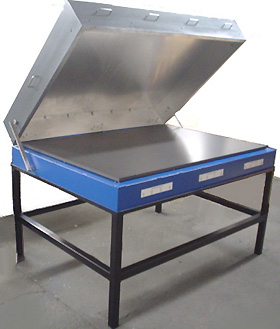

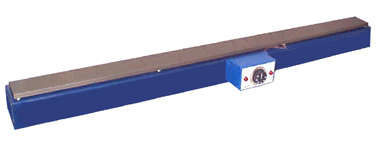

Custom made hot plate 48 in long x 4" wide shown with standard ST thermostat	Custom made for a prominent American university, with plate temperature uniform to 3 deg.C over a 40" x 60" surface.  Features an insulated, counter-balanced hood

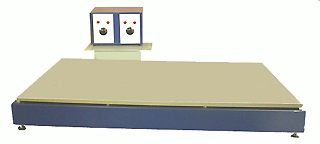

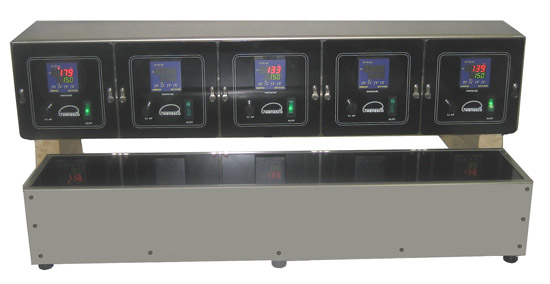

Model HP1836 hot plate shown with optional remote dual AH thermostat control. This upgrade from the standard single thermostat enables each half of the 18 X 36" plate to have its own temperature control.	Model HPZ5 with 5 separate heating zones under a single hi-temp glass plate. Each zone is independently controlled with remote digital thermostats. Wenesco can custom make a multizone hot plate to suit your requirements.

Here are some of the special possibilities...

	Sizes we have made for customers: from 4x4 inches up to 48x64 inches
	High-power hot plates are designed for rapid heatup and heavy work loads
	Heavy-duty hot plates for work loads up to 2,000 pounds
	Flanges for mounting into a hole on your work table
	Finger rests so operator can perform delicate tasks without burning fingers
	High temperature hot plates - up to 1500�F (793�C)
	Special voltages
	Heavy duty stand - you choose length of legs
	Portable insulated hood to convert hot plate into an oven

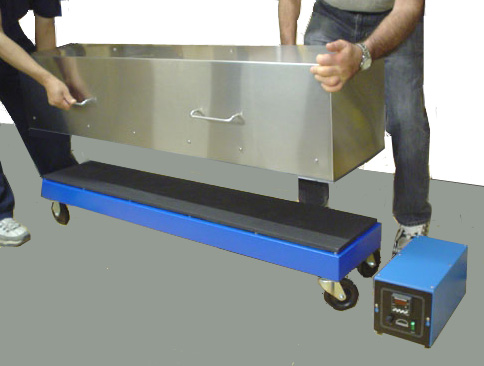

Custom hot plate with a 10 x 54-inch coated surface, mounted on casters, with a removable insulated hood. Temperature is controlled with a remote digital thermostat

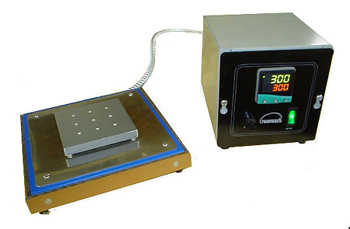

Special hot plate with a 4 in square heated surface drilled and tapped to customer specifications. This hot plate is controlled with a programmable digital thermostat
